Mobile Batching Machine

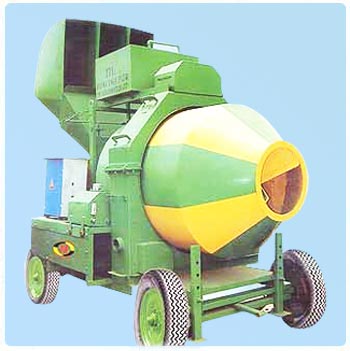

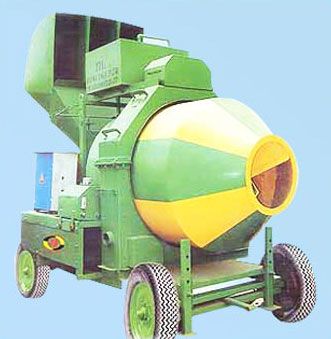

We are manufacturer and supplier of batching machine, mobile batching machine, mobile concrete plant, mobile concrete batching plant. Four wheel mounted Mobile Batching Machine has been designed to produce concrete-mix, at the desired place. It has facility of auto-cut off system with automatic control system It is available in.
|
|
Mobile Batching Machine |
|
MINI-MOBILE AKONA-RD SERIES BATCHING AND MIXING PLANTS have made conditions more flexible and it provide freedom to work easily at scattered work sites. They are..............
AKONA-RD 10B1 – 10 M3/Hr CAPAICITY WITH SINGLE BIN
AKONA-RD 10B3 – 10 M3/Hr CAPAICITY WITH THREE BIN
AKONA-RD 15B3 – 15 M3/Hr CAPAICITY WITH THREE BIN
Technical Specification :
| Model/Type |
RD Series |
| Water Tank Capacity |
200 ltre |
| Wheels |
Four Pneumatic Wheels. |
| Lifting |
Hydraulic |
| Type |
Mobile |
Detailed Data :
| MODEL |
AKONA-RD 10B1 |
AKONA-RD 10B3 |
AKONA-RD 15B3 |
| CAPACITY |
10(M3 / Hr) |
10(M3 / Hr) |
15(M3 / Hr) |
| Drum Mixer |
Ø 1280 x 1700 MM |
Ø 1280 x 1700 MM |
Ø 1480 x 1900 MM |
| RMC Out Put / Batch |
750 Kg |
750 Kg |
1200 Kg |
| Batches Per Hour |
30 |
30 |
30 |
| Discharge Height From G.I. |
1200 MM |
1200 MM |
1600 MM |
| No. of Bins |
1 |
3 |
3 |
| Material Feeding |
Manually |
Manually |
Manually |
| Aggregate Feeding |
By Weight |
By Weight |
By Weight |
| Water Feeding |
By Volume |
By Volume |
By Volume |
| POWER CONSUMPTION |
|
|
|
| DRUM MOTOR |
10 HP |
10 HP |
15 HP |
| WATER MOTOR |
1 HP |
1 HP |
2 X 1 HP |
| NET CONSUMPTION |
11 HP |
11 HP |
17 HP |
Technical Features :
- Fully control panel operated.
- Hydraulic lifting.
- Electronic weighing.
- Digital weight display for each bin.
- Water flow meter.
- Separate bin for each aggregat.
- High quality gear-boxes with heavy duty motors.
- Mechanical jacks for steady operation.
|
