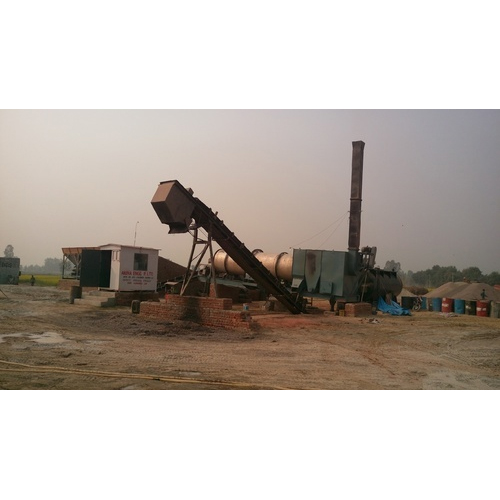

Hot Mix Plant
DRUM MIX TYPE PLANT MODEL "AKONA" DM-60 CAPACITY 90-120 TPH:
Drum complete flight, bitumen and fines, Piping, Sprocket drive Motor , frame Mounted Exhaust fan, electric motor frame mounted chamber at discharge end of drum has a special configuration to remove dust particles from the exhaust gas . Dryer unit burner capable of heating the aggregate to required temperature without any unburnt fuel or carbon residue on the aggregate and to reduce the moisture content of the aggregate to the specified minimum The plant will be fitted with Suitable type of thermometric instrument at a appropriate Places so as to indicate the temperature of exhaust gases, bitumen and mix
Electrical control panel constructed with custom built PLC model Genius of
Sprint make having following features :
|
|
Hot Mix Plant |
|
Technical Features :
- Panel with safety interlocks, overload relays for motor
protection, Single phase preventer, Isolation transformer to protect
PLC and MIMIC for easy operation and monitor.
- On line cycle data printing facility.
- Weight indicator for each aggregate, Cement, Water and Admix
- Interactive MMI for operation execution and data entry
- Optional Auto material and cycle correction, aggregate inching
facility for better accuracy
- Optional Data logging facility
- Optional PC interface for cycle execution and data storage
- SCADA Based system. Optional
- User friendly computer software. - Optional
- MIMIC design for easy panel operation
- Management useful report printing
- Web base reporting system. Optional
- SMS, E-mailing and web reporting - Optional
|
EXHAUSTER:
Exhauster: 16500 CFM
Exhauster Motor: 40 HP AC
SINGLE DECK VIBRATORY SCREEN:
Provided between the gathering and the slinger conveyor for the removal of the oversize material
SLINGER CONVEYOR:
Charging conveyor to be used with cold aggregate feeder equipped with a Load cell for continuously monitoring the
weight of the aggregate in TPH.
BURNER:
Drum mix Burner Package including high Pressure jet burner with fan motor and fuel coil pump with a electric preheated with auto on off control.
MINERAL FILLER AND DUST CONVEYING SYSTEM (OPTIONAL):
fabricated steel Plate with loading doors with pneumatic dust and filler conveying system rotary valve with electric motor adaptor chute with fines piping back to drum Mixer, Compressor with electric motor.
AGGREGATE FEEDER :
Stationery cold aggregate feeder. Four bin cold aggregate unit includes-gathering conveyor driven by a AC motor. Auxillary conveyor under each bin are driven by variable speed drive and fitted with adjustable quadrant gates.
BITUMEN STORAGE TANK :
Single compartment fitted with internal heat transfer coils. Fully insulated with 2" thick mattress glass wool with vent. Pipe, two fill return connection draw of connection and drain.
Complete with dial type thermometer, manhole and Interior access ladder, socket for thermostat insertion Exterior access ladder to tank top with Walk way and handrails.
LOAD OUT CONVEYOR :
Truck loading will be by an inclined load out conveyor with heat resistant belting equipped with a GOB hopper with hydraulically operated cam shell gate to provide surge capacity when changing Trucks and controls segregation in the mix.
CONTROL CABIN :
Centralized, Insulated control cabin (without Air Conditioner & Service Cables) with all control of plant.
|
|
Hot Mix Plant |
|

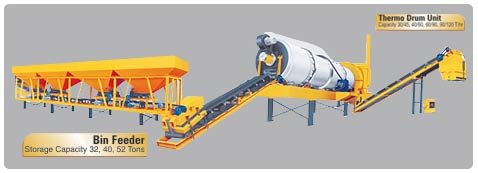

Bin feeder |

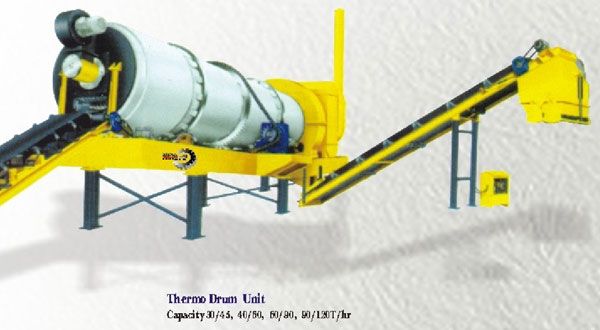

Thermo Drum Unit |
|
Storage Capacity |
Capacity |
|
32 : 40 : 52 Tons |
30/45 : 40/60 : 60/90 : 90/120 : T hr. |
|
|
|
|
Fuel Tank |
|
Asphalt Tank |
|
Fuel Tank |
Asphalt Tank |
|
Storage Capacity |
Storage Capacity |
|
4000 Ltrs. |
15 : 20 : 25 : 50 Tons |
|
|
Detailed Data :
Technical Specification :
| Capacity |
90-120 TPH Of Dryer |
| Diameter |
1800 mm |
| Conveyor Belt |
600 mm |
| Slinger Motor |
5.0 HP AC |
| Reduction Gear |
5: 1 D- Type |
| Model/Type |
DM-120 |
ASPHALT DRUM MIX PLANT
Detailed Data :
| Model |
DM-60 |
DM-90 |
DM-120 |
DM-150 |
| Capacity Range (TPH) |
45-60 |
60-90 |
90-120 |
120-150 |
| DRYER |
| Length (M) |
6.25 |
6.25 |
6.75 |
7.5 |
| Diameter (M) |
1.3 |
1.5 |
1.8 |
2.1 |
| Burner Rating (Ltr/Hr.) |
250 |
350 |
550 |
900 |
| BIN FEEDER |
| No. Of Bins |
4 |
4 |
4 |
4 |
| Bin Capacity (MT) |
8 |
10 |
12 |
15 |
| Belt Feeder Width (mm) |
500 |
500 |
500 |
500 |
| Gathering Conveyor with (mm) |
600 |
600 |
600 |
600 |
| SLINGER CONVEYOR |
| Conveyor with (mm) |
600 |
600 |
600 |
600 |
| LOADOUT CONVEYOR |
| Conveyor With (mm) |
600 |
600 |
600 |
600 |
| Load Out Height (m) |
3.2 |
3.2 |
3.2 |
3.2 |
| Hopper Capacity (Kg.) |
750 |
750 |
1000 |
2000 |
| Power
Requirements |
| Drum Drive (HP) |
20 |
25 |
40 |
60 |
| Exhauster (HP) |
20 |
25 |
50 |
70 |
| Bin Feeder Hopper (HP) |
4x2 |
4x2 |
4x3 |
4x3 |
| Gathering Conveyor (HP) |
5 |
5 |
7.5 |
7.5 |
| Slinger Conveyor (HP) |
5 |
5 |
7.5 |
7.5 |
| Vibratory Screen(HP) |
1 |
1 |
2 |
2 |
| Load out Conveyor (HP) |
5 |
5 |
7.5 |
7.5 |
| Hydraulic Power pack(HP) |
3 |
3 |
5 |
5 |
| Bitumen (Asphalt) Pump(HP) |
3 |
3 |
2 |
5 |
| Filler Unit |
| Rotary Valve (HP) |
2 |
2 |
5 |
5 |
| Blower (HP) |
5 |
5 |
5 |
5 |
| Dryer Automatic Burner |
| Fuel Pump (HP) |
2 |
2 |
3 |
5 |
| Blower (HP) |
5 |
10 |
15 |
25 |
| Hot Oil Pump (HP) |
0.5 |
0.5 |
0.5 |
0.5 |
| Bitumen Tank |
| Capacity (MT) |
15 |
20 |
20 |
15x2 |
| Fuel Tank |
|
|
|
|
| Capacity (Ltrs.) |
5000 |
5000 |
5000 |
10000 |
| TOTAL POWER REQUIRED |
HP |
HP |
HP |
HP |

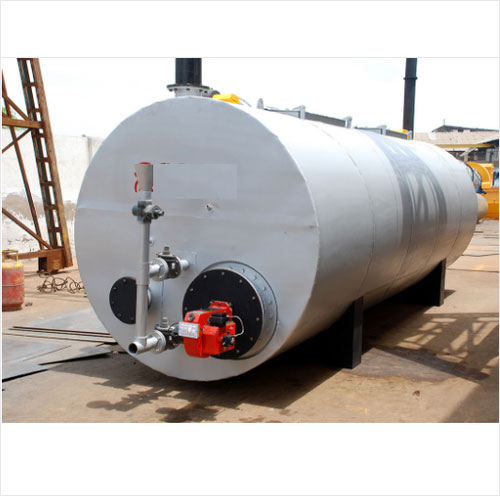

Hot Mix Plant Asphalt Tank
We are the suppliers of asphalt tank for hot mix plant
|
|
Hot Mix Plant Asphalt Tank |
|
Technical Specification :
| Brand/Make | AKONA |
| Model/Type | Asphalt Tank |
| Surface Treatment | Galvanized |
| Shape | Cylindrical |
| Storage Material | Milk/Dairy, Chemicals/Oils |
| Capacity | 15 20 25 50 Tons |
| Is It Leak Proof | Leak Proof |
| Body Material | Stainless Steel |

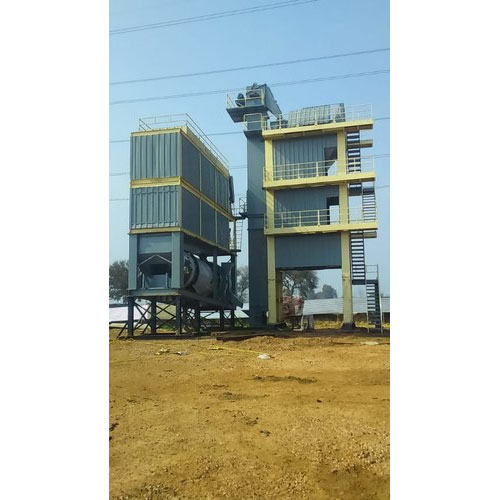

Asphalt Batch Type Hot Mix Plant
We are the suppliers of Asphalt Batch Type Hot Mix Plant with burner, mineral filler and dust conveying system, aggregate feeder, dryer drum, bitumen storage tank, mixing tower, bag house filter, control unit
|
|
Asphalt Batch Type Hot Mix Plant |
|
Technical Specification :
| Brand/Make | Akona-Abmp Series |
| Capacity upto | 240 tph |
| Usage/Application | Road Construction |

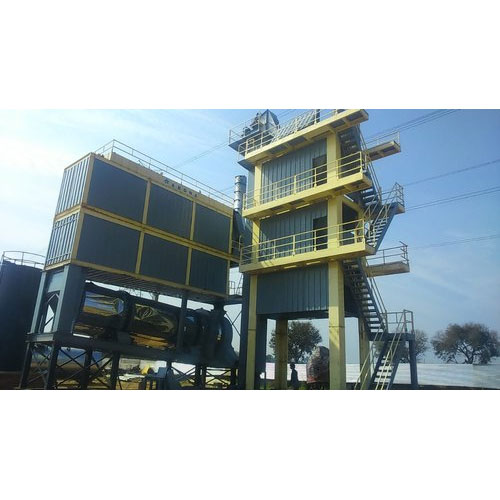

Asphalt Batch Mix Plant
asphalt batch type hot mix plant
model "akona-abmp series” capacity upto 240 tph
with burner, mineral filler and dust conveying system, aggregate feeder, dryer drum, bitumen storage tank, mixing tower, bag house filter, control unit
|
|
Asphalt Batch Mix Plant |
|
Technical Specification :
| Usage/Application | Road Construction |
| Brand | AKONA |
| Voltage | 415 |
| Size | 60-240 TPH |
| Automation Grade | Fully Automatic |
| Driven Type | AC Motor |

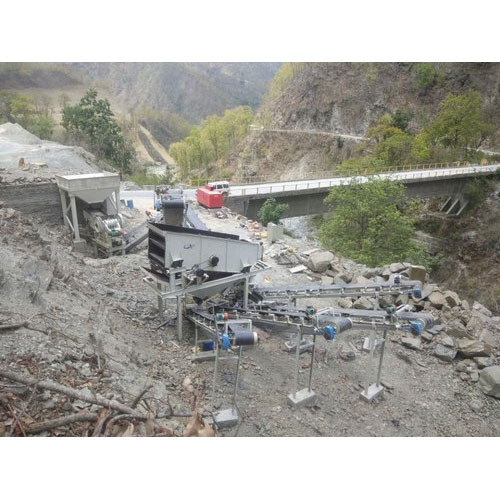

Stone Crusher Plant
Akona Engineering Pvt Ltd- We are love to intriduce our self that we are the best manufacturer of Stone Crusher all over India.
|
|
Stone Crusher |
|
Technical Specification :
| Usage/Application | Stone |
| Type Of Crushing Machines | Cone Crusher |
| Capacity | 10 TPH -350 TPH |
| Brand | Akona |
| Automation Grade | Automatic |

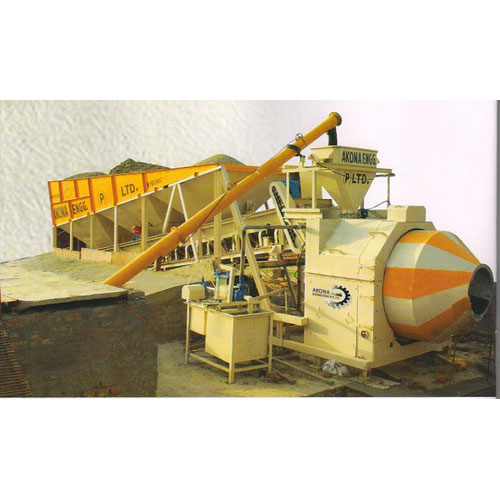

Ready Mixed Concrete Mixing Plant
We are the manufacturer and supplier of Batching Plant.
Technical Features :
- Fully automatic concrete batching & mixing plant (PAN Drum Type).
- Separate weighing system for cement, aggregate & sand.
- Italian screw feeder (Conveyor) to pour cement speedily.
- Water by weight.Pneumatically operated gate for aggregate & sand.Italian vibrators.
- High quality gearbox and heavy duty motors.Control Panel.
- Single chassis design to shift easily.
- Tabulated print out system for each batch
|
|
Ready Mixed Concrete Mixing Plant |
|
Technical Specification :
| Power Source | Diesel Engine |
| Mixer Type | Drum |
| Type Of The Drum Mixer | Reverse Drum Mixer |
| Automation Grade | Automatic |
| Design Type | Reversible Drum Mixer System |
| Features | PLC Operated |

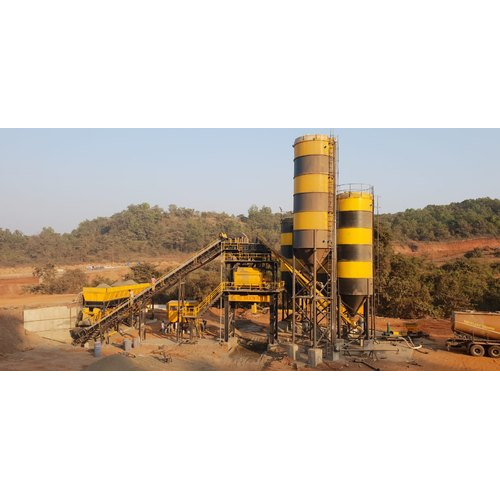

Ready Mix Concrete Plant
We are the Leading brand manufacturer of Ready Mix Concrete Plant
|
|
Ready Mix Concrete Plant |
|
Technical Specification :
| Power Source | As Per Demand |
| Usage/Application | Industrial |
| Brand | Akona |
| Mixer Type | Tan , Sanitary, Pan , Reversable |
| Output Capacity | As Per Model |
| Automation Grade | Automatic |
