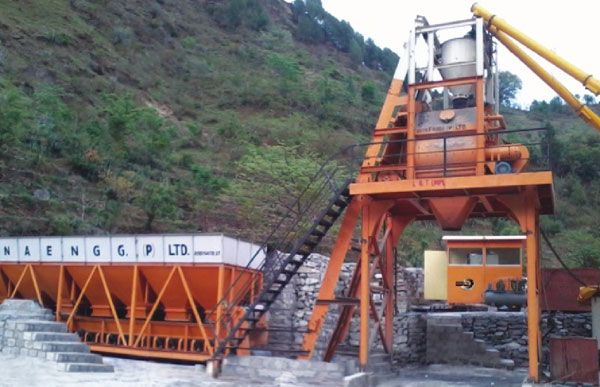

Fully Automatic Concrete Batching & Twin Shaft Mixing Plant (TS Series)

AKONA-Series is revolutionary designed model, in which we have used the design concept of very big capacity plants.The belt conveying system saves the time, reduces the maintenance and increases the output. Well known Twin shaft mixing technology provide optimum output along with the belt conveying system.

Complete Batching Plant

Ask for Price

Technical Specification :

Capacity	120 m3/hr and above
Control System	PLC
Discharge System	Hydraulic
Model/Type	TS Series
Operation	Automatic

Detailed Data :

MODEL	AKONA-90	AKONA-120
PLANT CAPACITY / HOUR
ASSURED COMPACTED CONCRETE OUTPUT (MAX.)	90 CUM.	90 CUM.
UNCOMPACTED MATERIAL INPUT (MAX.)	135 CUM	135 CUM.
MIXER TECHNOLOGY”	TWIN-SHAFT COMPULSARY	TWIN-SHAFT COMPULSARY
	CONCRETE MIXER	CONCRETE MIXER
MIXER MODEL MOTOR POWER”	MSO 2250/1500/MAO 2250/1 500	DKX 2.50 / 2 X 37 MAO
	(2 X 30KW)	3750/2500 (2 X 37 KW)
MIXING BLADE'S	14	16
CYCLE'S / HOUR	60	48
ELECTRONIC WEIGHING RANGE WITH LOAD CELL
AGGREGATE SCALE	4500 Kgs	6000 Kgs
CEMENT SCALE	900 Kgs	1200 Kgs
WATER SCALE	400 Kgs	500 Kgs
AD-MIX SCALE	10 Kgs	15 Kgs
WATER SUPPLY PUMP
TYPE	MONOBLOCK	MONOBLOCK
	SELF-SUCTION	SELF-SUCTION
BORE	80	80
MOTOR DRIVING POWER	7.5 Kw	7.5 Kw
AGGREGATE STORAGE FOUR BIN FEEDER	100 TONS (25 T X 4)	120 TONS (30 T X 4)
MAX. AGGREGATE SIZE	64mm	64mm
NO. OF GATES/GATES PER BIN	8/2	8/2
WEIGHING CONVEYOR	YES	YES
LENGTH	12 MTR	12 MTR
BELT-WIDTH	1200mm	1200mm
MOTOR DRIVING POWER X RPM	15 H.P. X 33	15 H.P. X 33
INCLINED CONVEYOUR / BUCKETT LOADING	YES/YES	YES/YES
BELT-LENGTH	55 MTR.	55 MTR.
BELT-WIDTH	700mm	700mm
MOTOR DRIVING POWER X RPM	15 H.P. X 100	15 H.P. X 100
BATCH CARRIER OVER MIXER	YES	YES
AIR COMPRESSOR
TYPE	SELF SUCTION	SELF SUCTION
MOTOR DRIVING POWER	11 Kw	11 Kw
STORAGE TANK	300 ltr.	360 ltr.
OPERATION SYSTEM	FULLY AUTOMATIC COMPUTERIZED PLC BASED CONTROL SYSTEM
MODEL	SRK 90	SRK 120
INDICATOR	TFT COLOURMONITOR WITH DUAL PROCESSOR
PLC	SIEMAN'S / DELTA / ALLEN BRADLEY
POWER SUPPLY	415 X 30 50 Hz	415 X 30 50 Hz

Technical Features :

Blade mixing technology with planetary gear-boxes.
Electronic weighing system for better accuracy in design – mix.
Separate weighing system for cement and fly-ash.
Italian screw feeder, to pour cement speedily
Password locking facility
Water and ad-mix pour by weight.
Pneumatically operated gate for aggregate & sand.
Italian vibrators.
Tabulated print out system for each batch.
No pit required only nominal civil work.
Heat proof control cabin.
Cement silo with vertical screw feeder (optional)
Hydraulic discharge system.
